GMS 120-27
Detectors · Part No. 06010817K0
- Category
- Detectors
- Part number
- 06010817K0
- Power
- Corded (mains)
- HSN
- 90221900
- GST rate
- 18%
About this tool

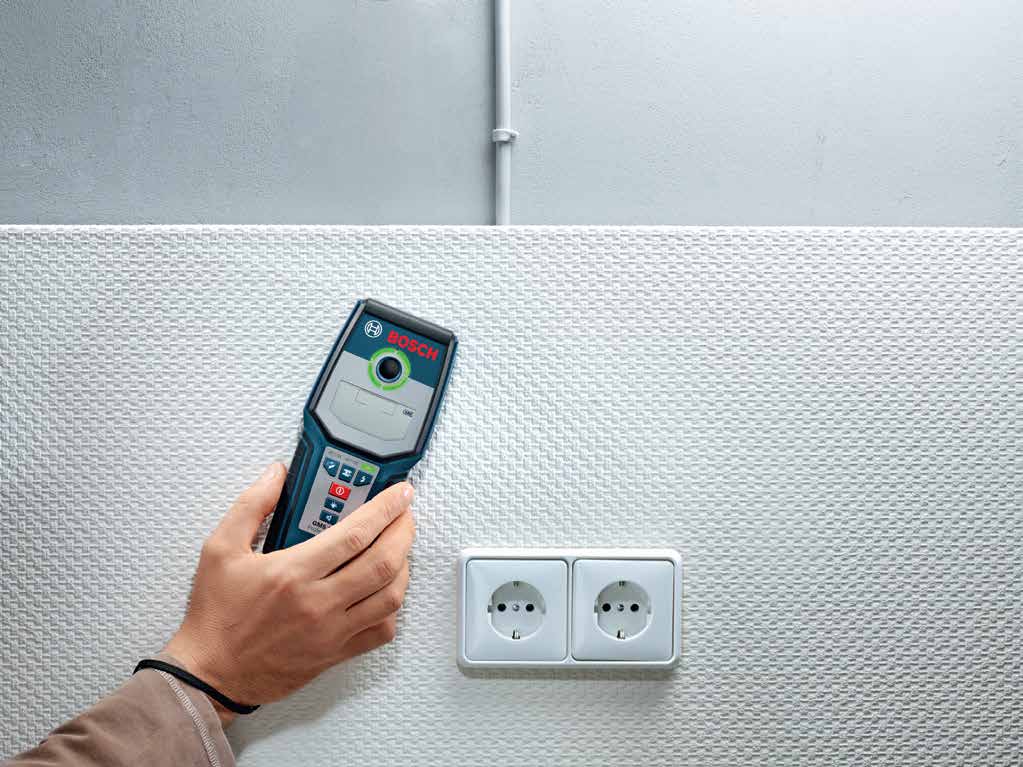

When you’re drilling into a wall, you want to get the job done, confident that you won’t hit an obstruction. Our GMS 120-27 Professional wall scanner allows uncomplicated and intuitive detection of objects. Detection results appear via signal indication on the display and the colour-coded marking hole. The easy-to-use detector offers simple mode selection, and you can mark exactly through the marking hole where objects have been detected. The robust GMS 120-27 was developed for tough job sites with IP54 dust and splash water protection, plus a shock-absorbing rubber casing.
Equipment & Application
Our GMS 120-27 Professional wall scanner helps you detect and locate metals, live wires, and wooden studs in dry walls. Locating objects in walls before drilling provides increased safety on the job, especially for craftspeople doing renovation work when fitting cabinets, kitchen counters, washbasins, boilers, and heating systems, or installing A/C and sprinkler systems.
Additional Information
Not only does this scanner identify the center of the detected object, it also indicates its material characteristics such as whether the object is magnetic or non-magnetic metal, a live wire, or non-metallic.
Technical data
12 published figures- Dust and splash protection
- IP54
- Max. detection depth
- 120 mm
- Bosch Radar Technology
- No
- Detectable objects
- magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), wooden substructures, live cables
- Detection depth, magnetic metal, max.
- 100 mm
- Detection depth, non-magnetic metal, max.
- 120 mm
- Detection depth, live cables, max.
- 50 mm
- Detection depth, wooden substructures, max.
- 30 mm
- Material identification
- Live object, Magnetic metal, Non-magnetic metal, Non-metal material
- Power supply
- 2 x 1.5 V LR6 (AA), 2 x 1.2 V HR6 (AA), 1 x BA 3.7 V 1.0 Ah Li-Ion battery
- Weight, approx.
- 0.29 kg
- Additional function
- Marking hole
Description and figures published by Bosch at bosch-professional.com. We reproduce them as published and do not add to them.
