GLL 18V-120-33 CG
Line Lasers · Part No. 06010651K0
- Category
- Line Lasers
- Part number
- 06010651K0
- Power
- Cordless · 18V battery
- HSN
- 90132000
- GST rate
- 18%
- Battery platform
- 18V
About this tool
The GLL 18V-120-33 CG Professional provides construction professionals with reliable accuracy in the toughest work conditions. The triple power source concept allows you to switch between 18V and 12V platforms, as well as alkaline C-cells to avoid downtime and stay focused on the job. This robust line laser features rubber-enforced housing and laser windows, as well as an IP65 rating, so you can work without worrying about water, dust, or impact. To make your job easier, the laser features a backlit corner keypad for individually selecting laser lines and an integrated mount with strong magnets for quick and secure mounting. The laser line fine adjustment lets you alter the vertical line without losing the reference point.
Equipment & Application

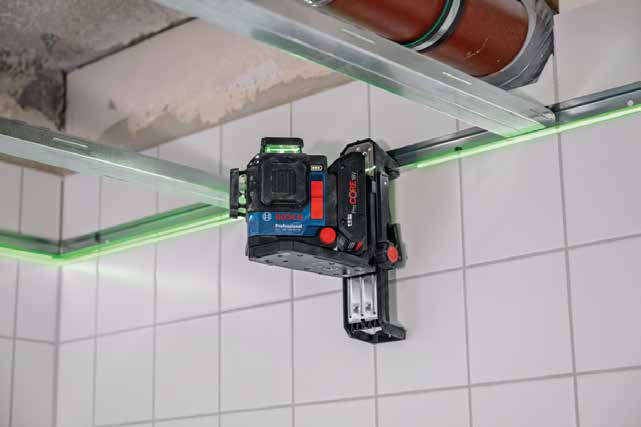

The Levelling Remote app for hands-free line control helps you to save time and to ensure better accuracy. Projecting 3 x 360° laser lines, this tool is ideal for construction workers setting up drywalls, installing studs, or aligning window or door frames – as well as for installing suspended ceilings and piping, and aligning sockets.
Technical data
20 published figures- Tripod thread
- 1/4", 5/8"
- Working range, value
- 35 m
- Battery voltage
- 18.0 V, 4 x 1.5 V LR14 (C), 12.0 V
- Laser diode
- 500 – 540 nm, < 10 mW
- Operating temperature
- -10 – 40 °C
- Storage temperature
- -20 – 70 °C
- Laser class
- 2
- Working range with receiver
- 120 m (radius)
- Accuracy
- ± 0.3 mm/m
- Self-levelling range
- ± 4°
- Levelling time
- 3 s
- Dust and splash protection
- IP65
- Power supply
- 4 x 1.5 V LR14 (C), 12 V Li-Ion battery, 18 V Li-Ion battery
- Operating time (max.)
- 20 h (18V 4Ah Li-Ion), 8 h (12V 2Ah Li-Ion), 8 h (4 x C, energy saving mode) in 3-line mode
- Weight, approx.
- 1.3 kg
- Colour of laser line
- Green
- Projection
- 3 x 360° line
- Compatible laser receivers
- LR 7
- Weight with 4.0 Ah battery
- 1.9 kg
- Weight with alkaline batteries
- 1.8 kg
Description and figures published by Bosch at bosch-professional.com. We reproduce them as published and do not add to them.
