GLL 100-33 CG
Line Lasers · Part No. 06010654K0
- Category
- Line Lasers
- Part number
- 06010654K0
- Power
- Corded (mains)
- HSN
- 90132000
- GST rate
- 18%
About this tool
The GLL 12V-100-33 CG Professional is a robust line laser that offers easy and intuitive operation. It is designed to withstand tough jobsite conditions with its rubber enforced housing and laser windows and IP65 rating for dust and water resistance. The Levelling Remote app allows for remote control of the 3 x 360° laser lines, making operations more accurate and time efficient. Dual power source offers you the flexibility to switch between the 12V Li-Ion battery and AA alkaline batteries as a backup power source.
Equipment & Application

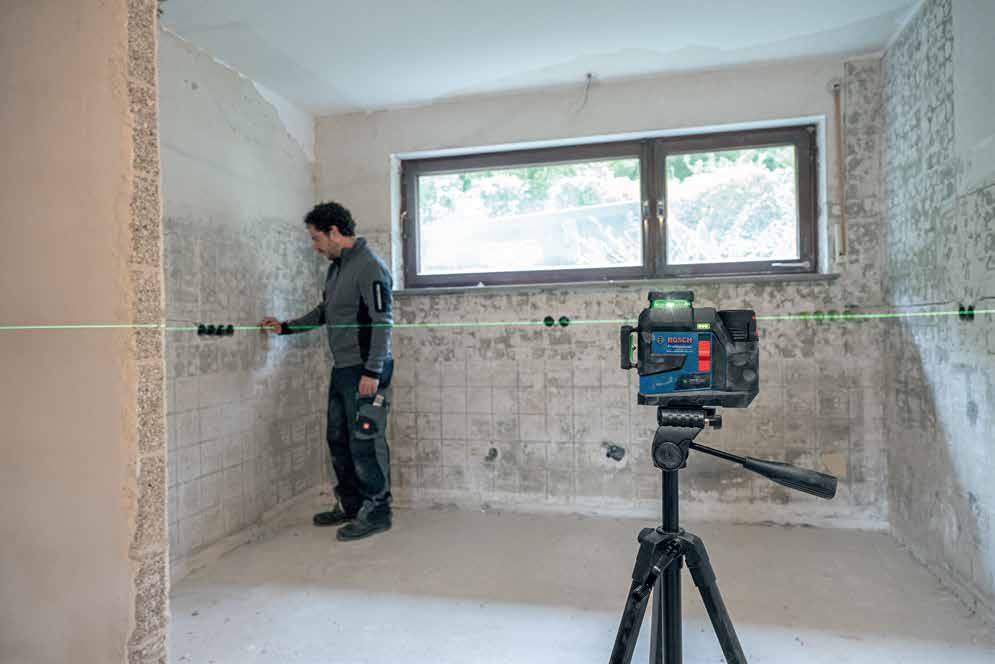

Enjoy easy operation of the GLL 12V-100-33 CG with a new keypad design for clear laser line selection and a large battery indicator for convenience. The line laser is perfect for alignment of walls and partitions, tile and flooring installations, and staircase construction.
Additional Information
It features 3 x 360° lines for simultaneous horizontal and vertical levelling, allowing for easy layout of large spaces with just one tool. For starting right away, the GLL 12V-100-33 CG laser receiver mode is always activated. With the optional laser receiver LR 7 Professional you can extend the working range up to 100 metres (radius). The bright green laser lines offer up to four times better visibility than red lines, ensuring precision in every task.
Technical data
18 published figures- Tripod thread
- 1/4", 5/8"
- Working range, value
- 30 m
- Battery voltage
- 12.0 V
- Laser diode
- 500 – 540 nm, < 10 mW
- Operating temperature
- -10 – 40 °C
- Storage temperature
- -20 – 70 °C
- Laser class
- 2
- Working range with receiver
- 100 m (radius)
- Accuracy
- ± 0.3 mm/m
- Self-levelling range
- ± 4°
- Levelling time
- 4 s
- Dust and splash protection
- IP65
- Power supply
- 4 x 1.5 V LR6 (AA), 12 V Li-Ion battery
- Operating time (max.)
- 6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode
- Weight, approx.
- 0.96 kg
- Colour of laser line
- Green
- Projection
- 3 x 360° line
- Compatible laser receivers
- LR 7
Description and figures published by Bosch at bosch-professional.com. We reproduce them as published and do not add to them.
